Threaded

olets th 01
olets th 02
Outlet Size Dimensions
Class 3000 Class 6000
(NPS) A C Wgt(lbs) A C Wgt(lbs)
1/8 3/4 0.328 0.07 1-1/8 0.157 0.15
1/4 3/4 0.438 0.12 1-1/8 0.250 0.30
3/8 13/16 0.563 0.16 1-1/8 0.359 0.30
1/2 1 0.703 0.21 1-1/4 0.464 0.42
3/4 1-1/16 0.906 0.36 1-7/16 0.612 0.71
1 1-5/16 1.141 0.59 1-9/16 0.815 1.25
1-1/4 1-5/16 1.469 0.84 1-5/8 1.160 1.53
1-1/2 1-3/8 1.688 1.00 1-11/16 1.338 1.91
2 1-1/2 2.188 1.72 2-1/16 1.687 4.83
2-1/2 1-13/16 2.563 2.90 2-11/16 2.125 6.19
3 2 3.188 4.24 2-11/16 2.624 7.36
3-1/2 2-1/8 3.688 4.40 – – –
4 2-1/4 4.188 6.91 3-5/16 3.438 14.02
5 2-5/8 5.275 9.46 3-11/16 4.313 20.03
6 2-11/16 6.313 14.03 4-1/8 5.187 29.36

Socket-Weld

olets socket weld 01
olets socket weld 02
Outlet Size Dimensions
Class 3000 Class 6000
(NPS) A C Wgt(lbs) A C Wgt(lbs)
1/8 3/4 0.269 0.07 1-1/8 0.157 0.15
1/4 3/4 0.364 0.12 1-1/8 0.250 0.30
3/8 13/16 0.493 0.16 1-1/8 0.359 0.30
1/2 1 0.622 0.27 1-1/4 0.464 0.48
3/4 1-1/16 0.824 0.36 1-7/16 0.612 0.81
1 1-5/16 1.049 0.59 1-9/16 0.815 1.30
1-1/4 1-5/16 1.380 0.84 1-5/8 1.160 1.54
1-1/2 1-3/8 1.610 1.00 1-11/16 1.338 1.97
2 1-1/2 2.067 1.53 2-1/16 1.687 5.01
2-1/2 1-13/16 2.469 2.66 2-11/16 2.125 6.19
3 2 3.068 3.72 2-11/16 2.624 7.36
3-1/2 2-1/8 3.548 4.40 – – –
4 2-1/4 4.026 7.05 3-5/16 3.438 14.02
5 2-5/8 5.047 9.46 3-11/16 4.313 20.03
6 2-11/16 6.065 14.03 4–1/8 5.187 29.36

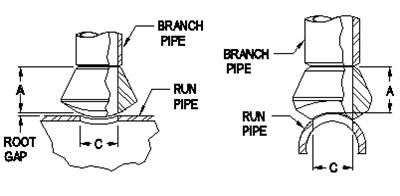

Butt-Weld

olets butt weld 01
olets butt weld 02
Outlet Size Dimensions
Standard Extra Heavy S160 XXH
(NPS) A C Weight A C Weight A S160 (C) XXH (C) Weight
1/8 5/8 .269 .08 5/8 .215 .10
1/4 5/8 .364 .08 5/8 .302 .08
3/8 3/4 .493 .15 3/4 .423 .15
1/2 3/4 .622 .18 3/4 .546 .20 1-1/8 .466 .252 .23
3/4 7/8 .824 .25 7/8 .742 .31 1-1/4 .614 .434 .65
1 1-1/16 1.049 .50 1-1/16 .957 .55 1-1/2 .815 .599 .78
1-1/4 1-1/4 1.380 .80 1-1/4 1.278 .90 1-3/4 1.160 .896 1.16
1-1/2 1-5/16 1.610 1.00 1-5/16 1.500 1.10 2 1.338 1.100 1.60
2 1-1/2 2.067 1.75 1-1/2 1.939 1.75 2-3/16 1.689 1.503 1.95
2-1/2 1-5/8 2.469 2.50 1-5/8 2.323 2.28 2-7/16 2.125 1.771 3.02
3 1-3/4 3.068 3.82 1-3/4 2.900 3.50 2-7/8 2.624 2.300 5.75
3-1/2 1-7/8 3.548 5.10 1-7/8 3.364 4.75
4 2 4.026 6.20 2 3.826 5.00 3-7/16 3.438 3.152 9.56
5 2-1/4 5.047 8.00 2-1/4 4.813 8.50 3-11/16 4.313 4.063 12.65
6 2-3/8 6.065 11.50 3-1/16 5.761 15.00 4-1/8 5.189 4.897 25.25
8 2-3/4 7.981 22.00 3-7/8 7.625 35.00 *
10 3-1/16 10.020 37.00 3-11/16 9.750 46.00 *
12 3-3/8 12.000 44.00 4-1/16 11.750 63.00 *
14 3-1/2 13.250 63.00 3-15/16 13.000 72.00 *
16 3-11/16 15.250 76.00 4-3/16 15.000 102.00 *
18 3-13/16 17.250 100.00 4-3/8 17.000 130.00 *
20 4 19.250 112.00 4-11/16 19.000 163.00 *
24 4-9/16 23.250 210.00 5-1/2 23.000 271.00 *
26 4-11/16 25.250 245.00 5-3/4 25.000 325.00 *
30 5-3/8 29.250 375.00 *
36 5-3/8 35.250 498.00 *
48 5-13/16 47.250 1125.00 *

Elbow

olets elbow 01
olets elbow 02

CLASS 3000 THREADED and SOCKET-WELD / STANDARD and XS BUTT-WELD

Outlet Size Dimensions
(NPS) C H Approx. Wt.Pounds
1/4 1 1/2 1 19/32 .5
3/8 1 1/2 1 19/32 .5
1/2 1 1/2 1 19/32 .65
3/4 1 23/32 1 7/8 .75
1 2 1/8 2 3/16 1.15
1 1/4 1 21/32 2 3/8 1.90
1 1/2 3 2 5/8 2.65
2 4 1/8 3 3/16 5.25

STANDARD and XS BUTT-WELD, ONLY

Outlet Size Dimensions
(NPS) C H Approx. Wt.Pounds
2 1/2 4 3/16 3 1/4 5.5
3 4 15/16 3 13/16 6.25
4 6 7/19 4 1/2 11.75
6 9 6 3/16 28

CLASS 6000 THREADED and SOCKET-WELD / SCH. 160 and XXS BUTT-WELD

Outlet Size Dimensions
(NPS) C H Approx. Wt.Pounds
1/4 1 3/8 1 19/32 .75
3/8 1 3/8 1 19/32 .75
1/2 1 23/32 1 7/8 .85
3/4 2 1/8 2 3/16 1.25
1 2 21/32 2 3/8 2.2
1 1/4 3 2 5/8 3.9
1 1/2 4 1/8 3 3/16 6.2

Locations offering this product:

A.J. Forsyth Acier Leroux JMS Russel Metals Russel Metals Alberta Russel Metals Atlantic Russel Metals British Columbia Russel Metals Manitoba Russel Metals Ontario Russel Metals Saskatchewan Russel Metals Williams Bahcall
