ALLOY SLINGS AND CHAIN
The only grade of chain recommended for overhead lifting is chain that has been fabricated from alloy steel. This chain may be purchased in lengths, or as a complete sling assembly to meet your requirements.
We supply chain manufactured from AISI Alloy grade steel. This is the standard of most Canadian manufacturers of alloy chain. The links of alloy chain are easily identified by an embossed symbol (A8, C8, HA8 or T) referring to grade 800 or (T) which is the international symbol for alloy chain. If neither of these symbols appear on your chain it is not recommended for overhead lifting. (Symbols should appear at least once per every foot).
Every length of alloy chain leaving the manufacturers plant is proof-tested to twice its safe working load. Every manufactured sling leaving our warehouse is also tested to double their safe working load and a numbered test certificate corresponding to the sling number is supplied.
KEEPING SLING RECORDS
Ask our representative to explain our sling and inspection program designed to improve your safety standards and lower your chain replacement costs.
GRADE 30 REGULAR LINK CHAIN
A durable, economical utility chain. Also known as proof coil, Grade 30 chain is manufactured from carbon steel.
USES
Guard rail chains, towing and logging chains and various other industrial and agricultural applications.
FINISHES
Self-coloured, hot galvanized or bright zinc plated.
PACKAGING
Available in drum, half drum, pailpak, mini-pailpak and reels.
SPECIFICATIONS
| NOMINAL SIZE STOCK DIA. (A) | LINK INSIDE DIMENSIONS | WEIGHT LBS/FT | WORKING LOAD LIMIT | ||||
|---|---|---|---|---|---|---|---|
| MM | INCH | DEC. | (B) WIDTH | (C) LENGTH | KG. | LBS. | |
| 4 | 1/8 | 0.157 | 0.285 | 0.825 | 0.197 | 180 | 400 |
| 5 | 3/16 E | 0.197 | 0.455 | 1.065 | 0.317 | 280 | 620 |
| 5.6 | 3/16 T | 0.22 | 0.375 | 1.04 | 0.397 | 365 | 800 |
| 6.3 | 1/4 E | 0.248 | 0.4 | 1.015 | 0.52 | 500 | 1100 |
| 7.1 | 1/4 T | 0.28 | 0.435 | 1.14 | 0.667 | 580 | 1300 |
| 8 | 5/16 E | 0.315 | 0.49 | 1.025 | 0.899 | 860 | 1900 |
| 8.5 | 5/16 T | 0.335 | 0.505 | 1.14 | 1.12 | 900 | 2000 |
| 9.5 | 3/8 E | 0.375 | 0.63 | 1.451 | 1.21 | 1090 | 2400 |
| 10 | 3/8 T | 0.394 | 0.68 | 1.57 | 1.31 | 1200 | 2650 |
| 12 | 7/16 | 0.472 | 0.715 | 1.46 | 2.033 | 1590 | 3500 |
| 12.5 | 1/2 E | 0.492 | 0.875 | 2.05 | 2.224 | 1890 | 4150 |
| 13.5 | 1/2 T | 0.531 | 0.83 | 1.7 | 2.565 | 2090 | 4600 |
| 16 | 5/8 | 0.625 | 0.89 | 2.6 | 3.303 | 3130 | 6900 |
| 20 | 3/4 | 0.781 | 1.1 | 2.625 | 5.472 | 4800 | 10600 |
| 26.2 | 1 | 1.031 | 1.51 | 2.77 | 10.69 | 6340 | 13950 |
Dimensions and weights are approximate and subject to variation.
WARNING: Working load limit is not to be exceeded. This chain is not to be used for overhead lifting.
GRADE 40
A selected analysis carbon steel chain with higher tensile strength and better resistance to wear and abrasion than Grade 30 chain. Also known as “High Test”. Embossed ‘G40’ and alternately with date code.
USES
Logging chains, towing chains, binding chains and various other applications.
FINISHES
Self-coloured, hot galvanized or bright zinc plated.
PACKAGING
Available in drum, half drum, pailpak, mini-pailpak and reels.
SPECIFICATIONS
| NOMINAL SIZE STOCK DIA. (A) | LINK INSIDE DIMENSIONS | WEIGHT LBS/FT | WORKING LOAD LIMIT | ||||
|---|---|---|---|---|---|---|---|
| MM | INCH | DEC. | (B) WIDTH | (C) LENGTH | KG. | LBS. | |
| 7.1 | 1/4 | 0.28 | 0.465 | 0.915 | 0.722 | 1179 | 2600 |
| 8.5 | 5/16 | 0.335 | 0.525 | 1.14 | 1.021 | 1769 | 3900 |
| 10 | 3/8 | 0.394 | 0.55 | 1.2 | 1.461 | 2449 | 5400 |
| 12 | 7/16 | 0.472 | 0.7 | 1.46 | 2.083 | 3260 | 7200 |
| 13.5 | 1/2 | 0.531 | 0.8 | 1.7 | 2.561 | 4170 | 9200 |
Dimensions and weights are approximate and subject to variation.
WARNING: Working load limit is not to be exceeded. This chain is not to be used for overhead lifting.
GRADE 70 CHAIN
A high strength, hardened and tempered chain made from special analysis steel.
Developed to meet transport load binding regulations where applicable. Also known as “Transport Chain”. Embossed ‘G70’, and alternately with date code.
USES
Load binding chains, towing chains, logging chains and various other applications.
FINISHES
Satin or Yellow Dichromate (gold) plated.
PACKAGING
Available in drum, half drum and pailpaks.
SPECIFICATIONS
| NOMINAL SIZE STOCK DIA. (A) | LINK INSIDE DIMENSIONS | WEIGHT LBS/FT | WORKING LOAD LIMIT | ||||
|---|---|---|---|---|---|---|---|
| MM | INCH | DEC. | (B) WIDTH | (C) LENGTH | KG. | LBS. | |
| 7.1 | 1/4 | 0.28 | 0.475 | 0.9 | 0.742 | 1430 | 3150 |
| 8.5 | 5/16 | 0.335 | 0.515 | 1.125 | 1.028 | 2130 | 4700 |
| 10 | 3/8 | 0.394 | 0.575 | 1.2 | 1.463 | 2990 | 6600 |
| 12 | 7/16 | 0.472 | 0.7 | 1.44 | 2.135 | 3970 | 8750 |
| 13.5 | 1/2 | 0.531 | 0.85 | 1.7 | 2.64 | 5130 | 11300 |
| 16 | 5/8 | 0.625 | 0.945 | 1.96 | 3.822 | 7760 | 17100 |
| 20.0* | 3/4 | 0.75 | 1.1 | 2.23 | 5.753 | 11200 | 24700 |
| * Satin finish only. | |||||||
Dimensions and weights are approximate and subject to variation.
WARNING: Working load limit is not to be exceeded. This chain is not to be used for overhead lifting.
GRADE 80 AND 100 WELDED/MECHANICAL CHAIN SLINGS
ONSITE INSPECTION
IN HOUSE TESTING & REPAIR (40’FT 200,000LB)
28’FT 200,0001b CAPACITY CHAIN TESTER
TIG WELDERS
SINGLE LINK HEAT-TREATING MACHINES
FURNACE FOR CUSTOM FORGING
2 BAR BENDERS- HIGH AND LOW CAPACITY FOR CUSTOM HOOKS AND MASTER LINKS
CERTIFIED WELDERS-PROVIDING CUSTOM CERTIFIED LIFTING ASSEMBLIES
HERC-ALLOY 800 GRADE 80 CHAIN
| NOMINAL SIZE STOCK DIA. (A) | LINK INSIDE DIMENSIONS | WEIGHT LBS/FT | WORKING LOAD LIMIT | ||||
|---|---|---|---|---|---|---|---|
| MM | INCH | DEC. | (B) WIDTH | (C) LENGTH | KG. | LBS. | |
| 27.1 | 19/32 | 1.281 | 1.395 | 1.868 | 10.718 | 11570 | 13500 |
| 28.0 | 15/16 | 1.315 | 1.454 | 1.006 | 10.906 | 12050 | 14500 |
| 10.0 | 13/86 | 1.394 | 1.572 | 1.222 | 11.440 | 13200 | 17100 |
| 12.5 | 11/26 | 1.512 | 1.786 | 1.404 | 12.577 | 15400 | 12000 |
| 16.0 | 15/86 | 1.630 | 1.854 | 1.734 | 13.873 | 18200 | 18100 |
| 20.0 | 13/46 | 1.787 | 1.052 | 2.000 | 16.315 | 12800 | 28300 |
| 22.4 | 17/86 | 1.875 | 1.136 | 2.250 | 17.764 | 15500 | 34200 |
| 26.0 | 17/86 | 1.024 | 1.349 | 2.663 | 19.954 | 21600 | 47700 |
| 32.0 | 11/46 | 1.260 | 1.656 | 3.250 | 15.709 | 32800 | 72300 |
Dimensions and weights are approximate and subject to variation.
WARNING: Working load limit is not to be exceeded.

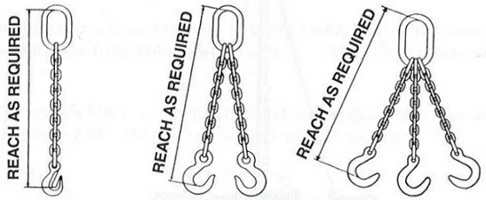

ALLOY SLING CHAINS
| SINGLE | DOUBLE | TRIPLE |
| OBLONG LINK | OBLONG LINK | OBLONG LINK |
| GRAB HOOK | SLING HOOKS | FOUNDRY HOOKS |
| TYPE SOG | TYPE DOS | TYPE TOF |
TYPE DEFINITION
First Symbol
- S – Single Leg
- D – Double Leg
- T – Triple Leg
- Q – Four Leg
Second Symbol
- O – Oblong Master Link
- P – Pear Shaped Master Link
- R – Master Round Ring
Third Symbol
- S – Sling Hook
- G – Grab Hook
- F – Foundry Hook
REACH:
Denotes length of sling from upper bearing point of oblong to lower bearing surface of hook.
SPECIAL ATTACHMENTS:
Such as hooks, or clamps can be furnished to your design. Our forging shop is equipped to produce from your drawings to meet your special requirements.
NON STANDARD SLINGS:
Endless, stone handling, magnet lifting, assemblies and many others are available upon request.
SINGLE CHAIN TYPES
SOS
CO
SOG
SOF
ASOS-A
ASOS-B
DOUBLE LEG CHAIN TYPES
DOS
DOO
DOG
DOF
ADOS-A
ADOS-B
DE
DB
TRIPLE AND QUAD LEG CHAIN TYPES
TOS
TOO
TOG
TOF
QOS
QOO
QOF
ALLOY CHAIN SLINGS
SINGLE LEG STYLE
DOUBLE LEG STYLE
TRIPLE & QUADRUPLE LEG STYLE
ALLOY CHAIN ASSEMBLIES – SINGLE LEG STYLE
| SIZE (INCHES) | CHAIN WELDED OBLONG MASTER LINK (INCHES) | OBLONG CODE NUMBER | WORKING LOAD LIMIT 90 DEG. | ||
|---|---|---|---|---|---|
| “A” | “B” | “C” | |||
| 0.28 | 0.50 | 2.50 | 5.00 | OMA050 | 3500 |
| 0.38 | 0.75 | 2.75 | 5.50 | OMA075 | 7100 |
| 0.50 | 1.00 | 3.50 | 7.00 | OMA100 | 12000 |
| 0.63 | 1.25 | 4.38 | 8.75 | OMA125 | 18100 |
| 0.75 | 1.50 | 5.25 | 10.50 | OMA150 | 28300 |
| 0.88 | 1.75 | 6.00 | 12.00 | OMA175 | 34200 |
| 1.00 | 2.00 | 7.00 | 14.00 | OMA200 | 47700 |
| 1.25 | 2.25 | 8.00 | 16.00 | OMA225 | 72300 |
ALLOY CHAIN ASSEMBLIES – DOUBLE LEG STYLE
| SIZE (INCHES) | CHAIN WELDED OBLONG MASTER LINK (INCHES) | OBLONG CODE NUMBER | WORKING LOAD LIMIT 30 DEG. | WORKING LOAD LIMIT 45 DEG. | WORKING LOAD LIMIT 60 DEG. | ||
|---|---|---|---|---|---|---|---|
| “A” | “B” | “C” | |||||
| 0.28 | 0.63 | 3.00 | 6.00 | OMA063 | 3500 | 4900 | 6100 |
| 0.38 | 0.75 | 2.75 | 5.50 | OMA075 | 7100 | 10000 | 12300 |
| 0.50 | 1.00 | 3.50 | 7.00 | OMA100 | 12000 | 170000 | 20800 |
| 0.63 | 1.25 | 4.38 | 8.75 | OMA125 | 18100 | 256000 | 31300 |
| 0.75 | 1.50 | 5.25 | 10.50 | OMA150 | 28300 | 40000 | 49000 |
| 0.88 | 1.75 | 6.00 | 12.00 | OMA175 | 34200 | 48400 | 59200 |
| 1.00 | 2.00 | 7.00 | 14.00 | OMA200 | 47700 | 67400 | 82600 |
| 1.25 | 2.25 | 8.00 | 16.00 | OMA225 | 72300 | 102200 | 125200 |
ALLOY CHAIN ASSEMBLIES – TRIPLE & QUADRUPLE LEG STYLE
| SIZE (INCHES) | CHAIN WELDED OBLONG MASTER LINK (INCHES) | CHAIN WELDED OBLONG MASTER LINK (INCHES) | WORKING LOAD LIMIT 30 DEG. | WORKING LOAD LIMIT 45 DEG. | WORKING LOAD LIMIT 60 DEG. | ||||
|---|---|---|---|---|---|---|---|---|---|
| “A” | “B” | “C” | “D” | “E” | “F” | ||||
| 0.28 | 0.75 | 2.75 | 5.50 | 0.50 | 1.25 | 2.00 | 5200 | 7400 | 9100 |
| 0.38 | 1.00 | 3.50 | 7.00 | 0.75 | 1.50 | 3.00 | 10600 | 15100 | 18400 |
| 0.50 | 1.25 | 4.38 | 8.75 | 1.00 | 2.00 | 4.00 | 18000 | 25500 | 31200 |
| 0.63 | 1.50 | 5.25 | 10.50 | 1.25 | 3.00 | 5.25 | 27100 | 38400 | 47000 |
| 0.75 | 1.75 | 6.00 | 12.00 | 1.50 | 3.25 | 5.75 | 42400 | 60000 | 73500 |
| 0.88 | 2.00 | 7.00 | 14.00 | 1.75 | 4.00 | 6.00 | 51300 | 72500 | 88900 |
| 1.00 | 2.25 | 8.00 | 16.00 | 1.88 | 4.00 | 7.00 | 71500 | 101200 | 123900 |
| 1.25 | 2.75 | 9.00 | 16.00 | 2.25 | 4.50 | 8.00 | 108400 | 153400 | 187800 |
