Accurloy
Accurloy is a clean, fine-grain, alloy steel produced by the electric furnace process and furnished turned, ground and polished for applications requiring exceptionally high tensile strength and resistance to wear, shock and fatigue. Rigid quality control assures a steel of consistently high chemical and physical properties. For the rough-turned version of Accurloy, please see NICHROLOY.
Benefits of Accurloy
Longer Service Life:Engineered to develop higher strength, finer finish, cleaner chemistry and better fatigue resistance than standard grades of alloys and carbon steels such as SAE 1045, 4140, 4150, 4340, etc.
Precision Finish:
Turned, ground and polished to very close tolerances, Accurloy will save you time and money in machining and down-time.
Availability:
Baldwin International maintains one of the largest stocks of precision finished shafting in the U.S. With a full array of sizes from 1/4″ dia. to 9″ dia. in common 1/16″ increments, as well as metric sizes, we can supply your specific shaft how you want it and when you want it.
Compare Accurloy to 4140
| Factors | 4140 | Accurloy | Advantages of Accurloy |
|---|---|---|---|
| Manufacturing Process | Open Hearth Furnace. Large heats, little uniform control | Small Electric Furnace heats | Greater control, less defects, cleaner steel which increases toughness and service life |
| Tensile Strength (Heat Treated 28-32 RC) | 125,000 PSI | 155,000 PSI Typical (Higher on smaller diameters) | Approximately 25% higher strength |
| Yield Strength (Heat Treated 28-32 RC) | 100,000 PSI | 130,000 PSI Typical (Higher on smaller diameters) | Approximately 25% higher strength |
| Stress Relieved & Machine Straightened | Optional – must be specified | Stress relieved at mill | Minimizes Bowing and “Walking” during machining |
| Low Sulphur Vacuum Degassed | Not a commercial practice | Degassed at mill | Builds toughness by removing impurities in the steel |
| Fatigue Resistance | Low Toughness | High degree of toughness | Higher endurance limit. Will minimize fatigue caused by twisting and flexing in use. |
| Wear Resistance | Hard and soft spots, Uneven wear | Uniform hardness | Uniform hardness and less decarburization give increased wear life. Tends to work-harden with wear. |
| Machinability | Not consistent | Uniform | Uniform grain and hardness offer better machinability |
Common Accurloy Applications
| Arbors Armature Shafts Axles Bolts Boring Bars Chain Links Chain Pins Clevices Conveyor Shafts and Rollers Crank Shafts / Pins Drag Line Parts Drift Pins Drill Shanks Drive ShaftsFeed Screws Fittings Gears Gear Shafts Generator Shafts Grinder Spindles Gudgeons High Pressure-Valve Studs Highly Stressed-Shafting Hoist Hooks & Pins Hoist Shafts Hubs Impeller ShaftsJack Shafts Journals Lead Screws Line Shafts Machine Tool Pinions Magneto Shafts Mandrels |
Mining Machine Parts Motor Shafts Nuts Pinions Pins Piston RodsPower Shovel Shafts Propeller Shafts Push Rods Reamer Shafts Renecking Spinning Rollers Rings Screws Set Screws Shackles Skidding Tools Sleeves Sleeve Shafts Spindle Spinning Rollers Steam Shovel Parts Steering Knuckles Studs Tie Rods Thrust Shafts Tongs Transmission Screws Valve Stems Wearing Strips Worms Worm Gears Wrist Pins |
Accurloy Size Range
| DIAMETER SIZE (INCHES) | |||
|---|---|---|---|
| 1/4 | 11/2 | 23/4 | 41/4 |
| 5/16 | 19/16 | 2 13/16 | 43/8 |
| 3/8 | 15/8 | 27/8 | 47/16 |
| 7/16 | 1 11/16 | 2 15/16 | 41/2 |
| 1/2 | 13/4 | 3 | 43/4 |
| 9/16 | 1 13/16 | 31/16 | 4 15/16 |
| 5/8 | 17/8 | 31/8 | 5 |
| 11/16 | 1 15/16 | 33/16 | 51/4 |
| 3/4 | 2 | 31/4 | 57/16 |
| 13/16 | 21/16 | 35/16 | 51/2 |
| 7/8 | 21/8 | 33/8 | 53/4 |
| 15/16 | 23/16 | 37/16 | 5 15/16 |
| 1 | 21/4 | 31/2 | 6 |
| 11/16 | 25/16 | 35/8 | 67/16 |
| 11/8 | 23/8 | 3 11/16 | 61/2 |
| 13/16 | 27/16 | 33/4 | 7 |
| 11/4 | 21/2 | 3 15/16 | 71/2 |
| 15/16 | 29/16 | 4 | 8 |
| 13/8 | 25/8 | 41/8 | 81/2 |
| 17/16 | 2 11/16 | 43/16 | 9 |

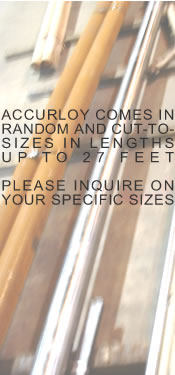

Accurloy comes in random and cut to sizes in lengths up to 27 feet. Please inquire to your specific sizes.
Properties of Accurloy
High Tensile Strength: Approximately 155,000 psi at delivered hardness of Rockwell C 32. Yield strength approximately 130,000 psi. Higher tensile values can be developed by additional heat treatment.
Heat-Treated: To a hardness of Rockwell C 28-32. Additional heat treatment unnecessary for most applications.
Fatigue Resistant: High endurance limit makes Accurloy the ideal steel for many high fatigue shaft and rod applications such as crane and armature shafts, hammer rods, etc.
Wear Resistant: Heat-treated to increase wear life over other alloy and high carbon steels.
Stress Relieved and Machine Straightened: Rolling and heat-treating stresses relieved at the mill, minimizing bowing or “walking” in machining. All bars machine straightened.
Fine Grain Structure: 95% of 8 on Shepherd fracture grain-size standards–assures the toughness and shock-resistance essential in a multi-purpose maintenance steel.
Machinability: Virtually free from hard of soft spots, pipe, seams or other flaws. Machines to an excellent finish with ordinary high speed tools.
